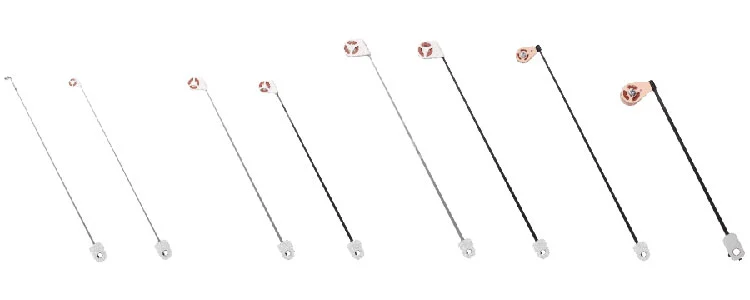

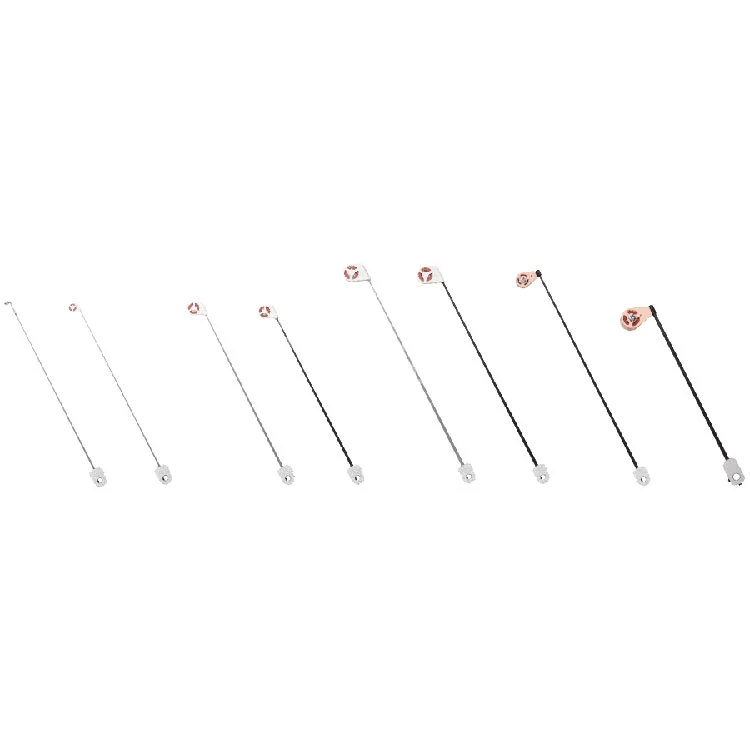

The special tension rod of the magnetic tensioner is composed of three parts: a wire head, a rod, and a fixed block. 1. The wire head has three forms: porcelain eye, pulley, and anti-jump device; 2. The rod is made of two materials: high-quality carbon fiber and glass fiber.
| Part No | Tenslon Arm | Tenslon AmHead Structure | Tenslon Range(gf) | Wire Range(mm) |
Applicable Tensloner Mode |
Rod Material | Rod Size (mm) |
| 1 | CL-1* | Ceramic Eyelet | 4-2000 | 0.025-0.12 | SS | Glass fiber | Φ1.0-φ2-200 |
| Wire Roller(S) | |||||||
| 2 | CL-2° | Wire Roller(M) | 14~400 | 0.06~0.30 | 300S |
Glass fiber/ carbon fiber |
φ1.5-φ3 200/250 |
| 3 | CL-3° | Wire Roller(L) | 50~900 | 0.10~0.50 | S |
φ 2 - φ3 . 5 200/250 |
|
| 4 | CL-7* | Ceramic Puley(M) | M | Carton fiber |
φ3-φ3.5 200/250 |
||
| 5 | CL-8* | Ceramic Pulley(008#) | 300-2000 | 0.25~1.0 | M/L | Carbon fber | φ3.5-φ4-200 |
