The following is the introduction of high quality New Energy Charging Transformer OBC Winding Machine, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!.
High degree of automation, can automatically complete the multi-winding interactive winding, wire coating, interlaced winding, winding and wrapping of OBC coils, effectively solve the problems of wire stacking, uneven wiring, film coating and wire damage during manual winding, and greatly improve production efficiency and product quality.
Outstanding work efficiency, OBC full load work efficiency is as high as more than 95%, from loading to unloading, a total of 25 subdivided processes, taking less than 3 minutes
High degree of flexibility, equipped with quick-change axis fixtures and clamps, product cutting time is less than 160 seconds, one machine for multiple uses, can quickly switch to produce different types of products.

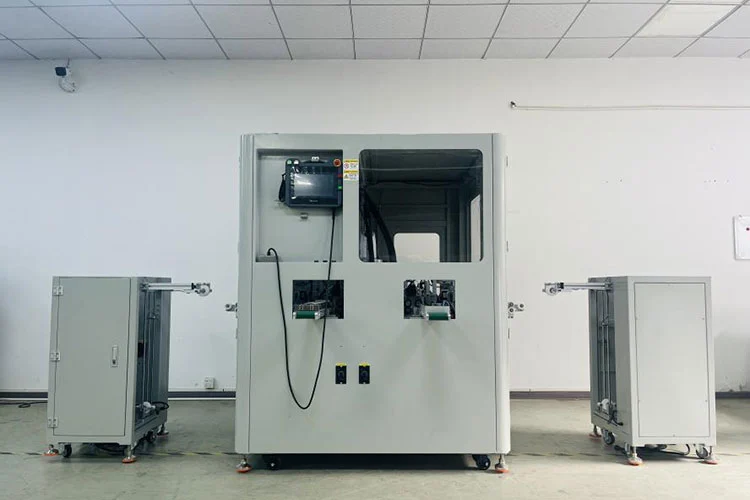

Including automotive-grade high-speed collaborative robots, coil fixture conveying mechanism, coating mechanism, winding mechanism, wire coating mechanism, wire feeding and arranging mechanism, tension adjustment mechanism, etc.
| Spindle Pitch | 200mm |
| Spindle Numbers | 1 |
| Spindle Speed | 2000rpm |
| Spindle Motor | 1500W |
| Wire Range | 0.5~2.0mm (Depending on each tensioner's configuration) |
| Max.Bobbin OD | 100mm |
| Jig Inner Diameter | 8、12mm |
| Power Voltage | AC220V10% |
| Air pressure | 0.4~0.6mpa |
| Machine Size | 1650*1020*1220mm |
| Machine Weight | ~600kgs |
