In the field of coil production and electronic component manufacturing, the Coil Winding Tensioner plays an indispensable role. This device controls and stabilizes the wire tension during the winding process, ensuring that each coil is wound with consistent precision and density. Without a properly functioning tensioner, the winding process can suffer from irregular coils, wire breakage, and poor performance in the final product.
A Coil Winding Tensioner is designed to apply accurate tension to copper, aluminum, or enamel-coated wires during winding operations. It prevents wire slack, reduces material waste, and guarantees smooth operation across automatic or semi-automatic coil winding machines. In modern industries — from transformers and motors to inductors and solenoids — consistent tension is essential for product quality, electrical efficiency, and long-term durability.
The core purpose of a tensioner is to ensure uniform wire tension throughout the entire winding cycle, which significantly affects coil shape, resistance, and inductance. By maintaining a steady tension, it eliminates the risk of deformation, improving both mechanical stability and performance accuracy.

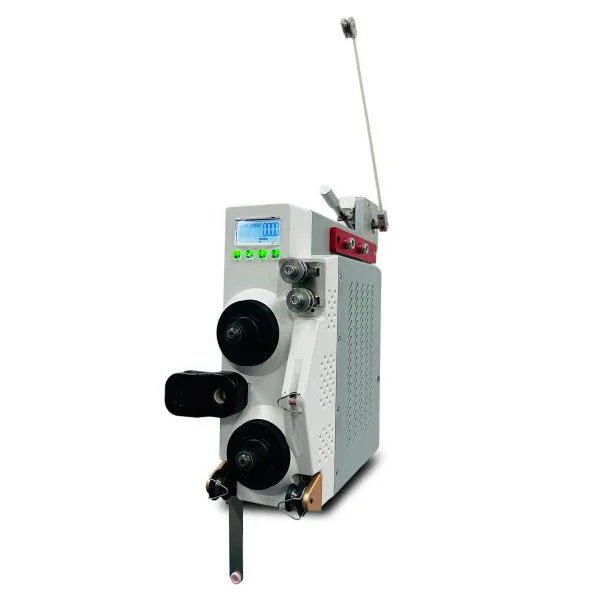

The working principle of a Coil Winding Tensioner is based on mechanical or electromagnetic control. Mechanical models use springs and friction pads to manage tension, while advanced electronic tensioners employ sensors and servo motors to dynamically adjust force based on wire speed and diameter.
Here are the key technical parameters that determine performance and compatibility across different coil production systems:
| Parameter | Specification Range | Description |
|---|---|---|
| Tension Range | 10g – 2000g (adjustable) | Determines wire tightness and consistency during winding |
| Applicable Wire Diameter | 0.02mm – 1.0mm | Supports fine and standard gauge wires for diverse coil applications |
| Control Type | Mechanical / Magnetic / Electronic | Defines how tension is managed — via friction, magnetic force, or servo system |
| Tension Accuracy | ±1% | Ensures high-precision winding consistency |
| Brake Type | Permanent Magnet / Powder Clutch / Servo Motor | Controls torque response and smoothness during winding |
| Wire Material Compatibility | Copper, Aluminum, Enamel-Coated Wire | Compatible with standard industrial winding materials |
| Usage Type | Manual, Semi-Automatic, Fully Automatic Winding Systems | Applicable across production scales and automation levels |
The process starts when the wire passes through a guide and is fed into the tensioner, where a regulated force is applied. Depending on the system, the tension is either passively resisted by friction or actively controlled by sensors. The goal is to balance wire feed rate and spool rotation speed to achieve optimal tension at all times.
Advanced coil winding systems increasingly adopt digital tension control technology, which uses microcontrollers to sense and adjust torque in real-time. This not only improves reliability but also prevents mechanical wear and tear on delicate wire coatings, minimizing production defects.
In high-volume manufacturing environments, precision tension control directly impacts output quality and efficiency. Without a reliable tensioner, even minor inconsistencies can lead to performance loss or coil failure during operation. Below are key advantages that explain why Coil Winding Tensioners are becoming a cornerstone of modern production systems:
Enhanced Precision and Uniformity – Ensures that every winding layer maintains consistent tightness, leading to improved coil integrity and electrical stability.
Reduced Wire Breakage – Maintains balanced tension throughout the process, preventing wire stress and mechanical fatigue.
Increased Productivity – Automated tension adjustment minimizes downtime and operator intervention.
Cost Efficiency – Reduces waste of expensive materials like copper wire and minimizes rework or rejects.
Improved Equipment Lifespan – Smooth winding tension reduces stress on machinery and bearings.
Compatibility and Flexibility – Works with a wide range of wire diameters and machine models, adaptable for various production scales.
Energy Efficiency – Modern electronic tensioners optimize torque and motor control, lowering energy consumption.
As global manufacturing trends move toward smart factories and precision automation, tensioners are evolving from mechanical to fully digital systems. With IoT integration and AI-assisted calibration, the next generation of coil winding tensioners can automatically adjust to environmental changes such as humidity, wire thickness, and speed variations.
This evolution not only enhances precision but also supports predictive maintenance — allowing systems to monitor wear levels, detect anomalies, and schedule service automatically. The result is a more stable, efficient, and cost-effective production process that aligns with Industry 4.0 standards.
Q1: What factors should be considered when selecting a Coil Winding Tensioner?
A: The choice depends on several factors such as wire type, diameter, desired tension range, and production speed. For fine wires (below 0.05mm), an electronic tensioner with servo control offers higher accuracy and smoother control. For general applications, a mechanical or magnetic tensioner may suffice. Other considerations include environmental stability, maintenance requirements, and compatibility with existing winding equipment.
Q2: How often should a Coil Winding Tensioner be maintained or calibrated?
A: Maintenance frequency varies with usage intensity. For high-speed continuous operations, calibration should occur every 3–6 months to ensure optimal tension accuracy. Regular cleaning of tension pads, magnetic assemblies, and wire guides is essential to prevent dust accumulation or wear that could alter tension settings. Electronic tensioners may include self-calibration features, reducing manual intervention.
The future of coil winding tensioners lies in automation, digitization, and integration. As global industries adopt smart manufacturing practices, tensioners are becoming more intelligent and connected. The next generation of models features real-time data analytics, enabling operators to monitor performance remotely and make data-driven adjustments.
Upcoming developments include:
Adaptive Control Systems that automatically detect changes in wire tension and adjust torque without manual input.
Wireless Monitoring that allows quality engineers to track multiple winding stations simultaneously.
Predictive Maintenance Algorithms that analyze operational data to anticipate and prevent potential failures.
Lightweight, modular designs that simplify assembly, calibration, and replacement in automated lines.
These innovations are set to redefine productivity standards and provide manufacturers with greater control, accuracy, and energy efficiency. The combination of sensor technology and AI-based optimization ensures that the entire winding process — from start to finish — operates at peak performance levels.
In the competitive landscape of coil manufacturing, Zongheng stands out as a trusted brand committed to precision, durability, and innovation. Each Zongheng Coil Winding Tensioner is engineered using high-grade materials and advanced control technology to meet the demands of modern automated production.
Zongheng tensioners deliver:
Consistent, reliable tension performance for all wire diameters.
Low maintenance operation with robust design.
High compatibility across automatic and manual winding systems.
Excellent cost-to-performance ratio.
Long service life backed by rigorous quality control.
With over two decades of industrial expertise, Zongheng has established itself as a preferred choice for transformer manufacturers, motor producers, and precision electronics factories worldwide. The brand continuously invests in R&D and innovation, ensuring each product reflects the latest advancements in coil winding technology.
For industries seeking to enhance coil accuracy, reduce waste, and improve overall production efficiency, Zongheng’s Coil Winding Tensioners provide a proven and reliable solution.
Contact us today to learn more about Zongheng’s comprehensive range of coil winding solutions and how they can optimize your production line for maximum precision and performance.
-
