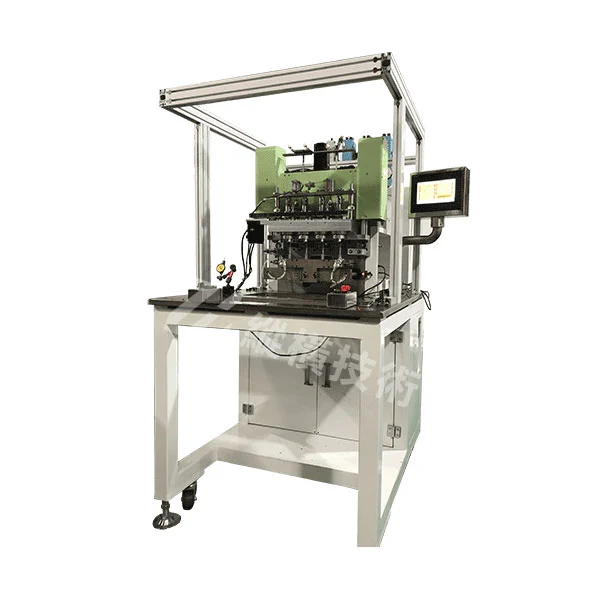

Micro-Fine Wire Precision Row Winding Machine

Micro-Fine Wire Precision Row Winding Machine is a professional equipment used for precise winding of micro-diameter wires.

Equipment Features

High-precision wire arrangement: It can arrange and wind fine wires with high precision. The wire arrangement accuracy can reach the micron level. For example, the spacing accuracy of the wire arrangement can be controlled within ±0. 01mm, ensuring that the wound coils are tightly and neatly arranged, meeting the strict requirements of precision electronic equipment for coils.

Adapt to fine wire diameter: Specially designed for processing fine wires, the wire diameter that can be wound is usually between 0. 01-0. 2mm, such as very fine enameled wires, etc. This wire diameter range is suitable for manufacturing small, high-precision electronic components.

Precision tension control: Equipped with a precise tension control system. Since fine wires are easy to break, tension control is crucial. The tension sensor monitors the tension of the wire in real time and can accurately adjust the tension to ensure that the wire will not break due to excessive tension during the winding process, nor will it cause chaotic wiring due to too little tension.

Application Areas

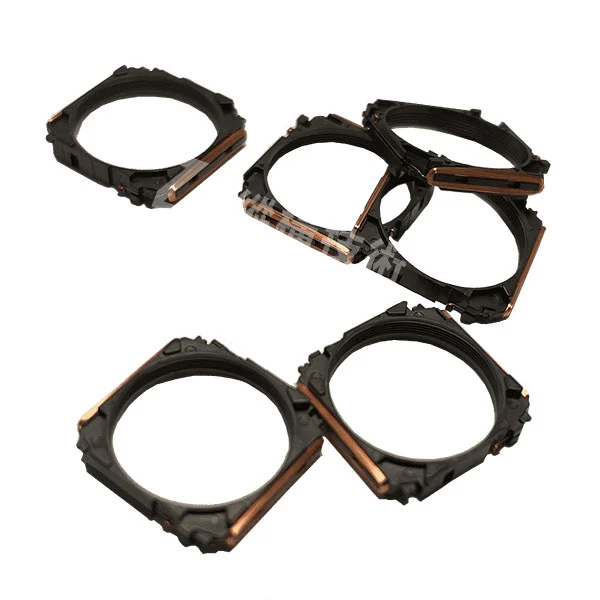

Electronic component manufacturing: When producing small inductors, high-precision transformers and other electronic components, it is necessary to wind fine wire coils. This winding machine can ensure the quality and performance of the coils. For example, it is used in the winding of some tiny inductor coils in smartphones.
