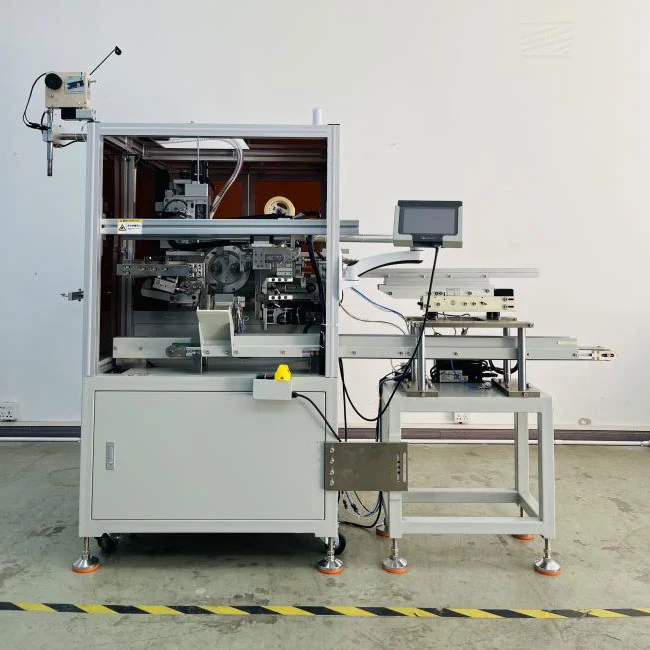

Fully Automatic Single-Axis and Double-Axis Precision Winding Machine

The Fully Automatic Single-Axis and Double-Axis Precision Winding Machine is a precision automatic winding equipment that can simulate manual wiring. The automatic system forms a closed-loop fine-tuning production process through real-time detection devices and wiring and winding systems. It can correct the cumulative difference between wiring and winding in multi-turn and multi-layer winding at any time to complete the full-row and dense winding of electromagnetic coils such as automotive solenoid valves and automotive motors, getting rid of the inefficient and unstable factors of manual wiring production of such coils. The unique automotive relay coil lead slot wiring process can automatically complete the full-row and dense winding and slot-retaining coils of automotive relays.

Features and Advantages

High-precision winding: With precise mechanical structure and advanced control system, the winding precision is extremely high, such as the spacing accuracy of the wire arrangement can reach ±0. 01mm, and the number of turns error can be controlled within a very small range, ensuring the excellent quality of the wound coil, which can meet the strict requirements of high-end electronic equipment for coils.

Precision tension control: Equipped with a high-precision tension control system, the tension sensor monitors and accurately adjusts the wire tension in real time, so that the wire maintains a stable tension during winding, avoiding wire damage or uneven winding caused by tension problems.

High degree of automation: With automatic feeding, winding, wire cutting, unloading and other functions, it can realize full-process automated production, greatly improve production efficiency, reduce labor costs, and ensure the consistency and stability of product quality.

Easy operation: Usually a touch screen operation interface is used, and users can intuitively input winding parameters, select winding modes, etc., and can also store multiple winding programs for easy call, operation and management.

Strong compatibility: It can adapt to a variety of wires of different materials and wire diameters and coil skeletons of different sizes. The applicable wire diameter is generally between 0. 1mm-0. 6mm. By replacing the clamps, etc., it can meet the winding needs of different products.
