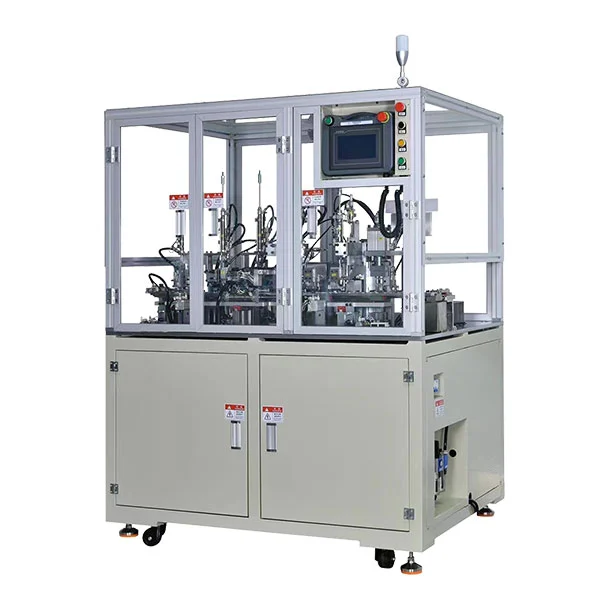

Fully Automatic Four-Axis Internal Winding Machine

The Fully Automatic Four-Axis Internal Winding Machine is an efficient and multifunctional winding equipment designed for winding small precision coils. Its four-axis linkage function significantly improves production efficiency and winding accuracy, and is widely used in the manufacture of transformers, inductors, relays, sensors and other electronic components.

1. The spindle and each dimension adopt AC servo motor, and the running speed and positioning speed of each axis are fast and accurate.

2. Programming method: touch screen programming, providing human-computer interactive visual teaching system, realizing WYSIWYG programming effect.

3. The base adopts seamless welding of steel plates, which bears heavy loads, reduces noise and vibration, and increases the stability of the machine.

4. Imported guide rails and lead screws are adopted to ensure the accuracy of positioning and repeated positioning of the machine.

3. Every step of high-speed spindle assembly is strictly quality controlled, low noise and long service life.

4. This machine is a double-head or four-head type, which realizes the best cost performance of the equipment.

5. While the machine is winding at high speed, it can control and process the winding process, can perform multi-axis synchronous and neat, z-arrange winding and complete special processes with high winding requirements.

8. Automatic winding head and tail, automatic winding, automatic cable arrangement, automatic indexing, automatic clamping and shearing.

parameters
