What Are Coils OEM and Why Do They Matter?
How Do Coils OEM Improve Product Efficiency and Durability?
Why Are Automotive Coils and Servo Motor Coils Vital for Today’s Industries?
Future Trends, Brand Excellence, and How to Contact DONGGUAN ZONGHENG

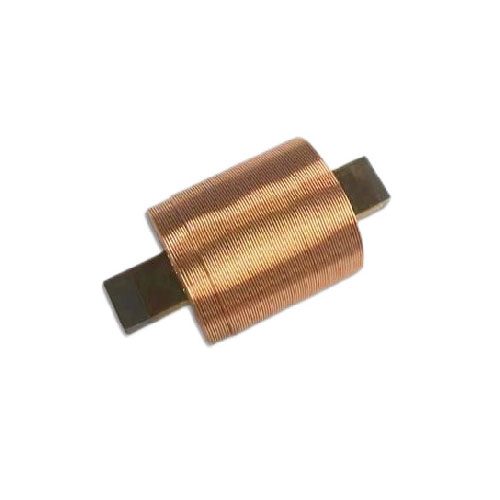

Original Equipment Manufacturer (OEM) coils are precision-engineered components designed to deliver superior electromagnetic performance across multiple sectors — from automotive and machinery to automation systems. These coils serve as the heart of numerous electrical and electronic devices, ensuring stable magnetic flux, controlled energy transfer, and long-term reliability.
In essence, Coils OEM bridge the gap between electrical energy and mechanical motion, playing a crucial role in creating smooth, efficient, and consistent operations. The technology behind OEM coils revolves around key performance parameters such as inductance, resistance, current capacity, and coil geometry — all optimized for the final equipment’s specifications.
Magnetic Field Generation: Converts electrical energy into magnetic fields that drive mechanical components.
Signal Stability: Ensures consistent signal flow in automation and sensing applications.
Energy Efficiency: Minimizes power loss and heat buildup through advanced winding and insulation technologies.
Durability: Withstands harsh conditions, vibrations, and thermal variations without performance degradation.
Customization: OEM production ensures each coil is precisely tailored to customer equipment and industry requirements.
| Parameter | Description | Typical Range/Specification |
|---|---|---|
| Coil Type | OEM Electromagnetic Coil | Customizable (Automotive, Servo, etc.) |
| Wire Material | Copper / Aluminum / Enamel-Coated | Ø0.05 mm – Ø3.0 mm |
| Insulation Class | F / H / N (Heat-resistant Enamel) | Up to 200°C |
| Inductance Range | Low to High Frequency Applications | 1 µH – 500 mH |
| Resistance Tolerance | ±5% to ±10% | Custom Specification |
| Core Material | Ferrite / Iron / Laminated Steel | As Required |
| Coil Shape Options | Round, Rectangular, Toroidal, Spiral | OEM Design Based |
| Voltage Range | Low to Medium Voltage Applications | Up to 480V |
| Applications | Automotive, Servo Motors, Robotics, Sensors, Transformers | Tailored |
Coils OEM are not just mechanical parts — they are engineered solutions tailored for stability, efficiency, and performance precision. In every OEM system, the quality of the coil directly determines the consistency and responsiveness of the final equipment.
Efficiency and durability are two fundamental performance measures in OEM coil manufacturing. Each OEM coil is developed under strict design and testing standards to ensure minimal loss, superior magnetic coupling, and mechanical endurance.
Precision Winding Technology: Advanced winding machines maintain consistent tension and alignment, ensuring uniform inductance and reduced resistance.
High-Conductivity Materials: Premium copper and aluminum wires reduce energy losses and improve conductivity.
Optimized Coil Geometry: Coil design adapts to specific applications for the best possible magnetic flux and minimal eddy currents.
Superior Heat Dissipation: OEM coils incorporate insulation and structural design for thermal stability in continuous operations.
Protective Coatings: Surface coatings resist corrosion, abrasion, and moisture.
Rigorous Testing: Every coil undergoes vibration, endurance, and thermal tests to meet global reliability standards.
Quality Control: OEM manufacturers apply ISO and IATF-certified processes for total quality management.
Custom Fitment: Each coil is built for seamless integration into the target system, reducing mechanical stress and installation errors.
In both industrial and consumer-grade applications, an OEM coil’s lifespan can exceed standard coils by 30–50%, especially when designed with high-grade insulation and core materials. The result is enhanced machine uptime, lower maintenance costs, and a more sustainable lifecycle for end products.
OEM coils play a foundational role in powering today’s rapidly evolving industries. Two critical examples — Automotive Coils and Servo Motor Coils — highlight the precision and adaptability of this technology.

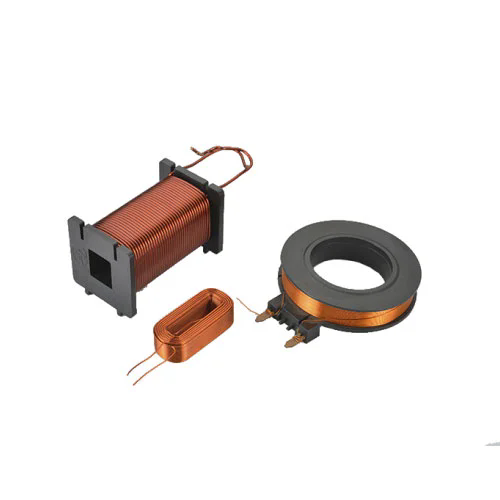

Automotive coils convert low-voltage energy from the battery into the high-voltage pulses necessary to ignite the fuel-air mixture in combustion engines. In electric vehicles, these coils are part of the power control units that manage current conversion and distribution.
Automotive Coil Key Features and Specifications
| Specification | Details |
|---|---|
| Application | Ignition Systems / Power Electronics |
| Input Voltage | 12V – 24V |
| Output Voltage | Up to 40,000V (Ignition) |
| Primary Resistance | 0.3Ω – 3Ω |
| Secondary Resistance | 5kΩ – 15kΩ |
| Insulation Resistance | >100 MΩ |
| Coil Type | Conventional / Pencil / Rail Coil |
| Material Composition | Copper Wire + Epoxy Potting + Iron Core |
These coils must deliver consistent voltage transformation under various conditions such as high humidity, vibration, and temperature fluctuations. Automotive manufacturers depend on OEM coil partners for both standard and custom solutions to achieve high ignition performance, reduced emissions, and optimal engine efficiency.
Servo motor coils are essential for automation and robotics. They provide the precise electromagnetic fields required to control motor torque and speed in real time.
Servo Motor Coil Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V – 380V |
| Coil Resistance | 1Ω – 20Ω |
| Winding Type | Multi-layer precision winding |
| Wire Gauge | AWG 20 – AWG 36 |
| Core Material | Silicon Steel / Ferrite |
| Insulation Grade | Class F or H |
| Operating Temperature | -40°C to +180°C |
| Typical Applications | Robotics, CNC, Automation, Servo Drives |
Servo motor coils are designed to maintain electromagnetic symmetry and low vibration, supporting consistent motion accuracy in high-speed environments. In CNC systems, industrial robots, and automation lines, the stability of servo coils ensures precise positioning, faster response times, and minimal power loss.
Both Automotive Coils and Servo Motor Coils exemplify how OEM coil production directly contributes to performance optimization, safety enhancement, and energy efficiency across industries.
The future of OEM coil technology lies in miniaturization, energy efficiency, and smart integration. Key trends include:
Integration with Smart Sensors: Embedding sensors to monitor temperature, current, and performance in real-time.
High-Frequency Coil Designs: Supporting next-generation electric vehicles and high-speed automation.
Eco-Friendly Production: Using recyclable materials and energy-efficient manufacturing processes.
Customization and Modularity: Designing coils that adapt quickly to different voltage or mechanical configurations.
Manufacturers are increasingly focusing on sustainability, performance data analytics, and improved coil geometries that reduce electromagnetic interference while enhancing overall product efficiency.
Q1: What factors determine the performance of an OEM coil?
A1: Coil performance depends on wire quality, winding precision, insulation grade, and magnetic core material. Each factor affects inductance, resistance, and temperature stability.
Q2: Why should companies choose OEM coils instead of generic ones?
A2: OEM coils are specifically designed to match the equipment’s voltage, frequency, and size requirements, ensuring better reliability, compatibility, and longer operational life.
Q3: How long can an OEM coil typically last?
A3: Depending on the operating conditions, OEM coils can last over 10 years, with consistent performance under thermal and mechanical stress due to superior insulation and precise engineering.
With decades of precision manufacturing experience, DONGGUAN ZONGHENG stands as a reliable partner for high-quality OEM coil production, serving industries including automotive, automation, and electrical systems. The company specializes in designing and manufacturing Automotive Coils and Servo Motor Coils with a strong focus on performance, efficiency, and durability.
Every coil is produced under rigorous quality control systems, ensuring consistency and reliability for clients worldwide. By integrating advanced technology with skilled craftsmanship, DONGGUAN ZONGHENG continues to deliver tailored coil solutions that empower innovation across multiple industries.
Contact Us today to learn more about OEM coil customization, detailed product specifications, or partnership opportunities. Your performance, powered by DONGGUAN ZONGHENG’s precision engineering, begins here.
