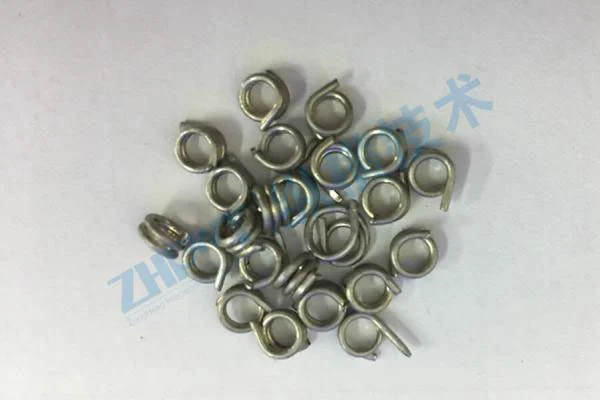

The tin wire quantitative winding machine is equipped with a digital control panel, which can realize parameter setting, automatic calculation and real-time monitoring, and is easy to operate. The optimized winding speed and stable tension control system greatly improve work efficiency.
1. Fully automatic operation without manual supervision, high production efficiency;
2. The amount of tin wire wound is standard, balanced and adjustable;
3. Friendly human-machine interface, full Chinese display;
4. Precision design, easy adjustment, low failure rate, convenient maintenance;
| Model | Customized |
| Control method | 7-inch LCD touch screen |
| Air pressure | 4-6kgf/c㎡ |
| Number of axes | 1spindles |
| Reel speed | Max 300RPM/min |
| Stop accuracy | ±0.01° |
| Power supply | Single-phase AC220V/50HZ |
| Winding motor | 400W servo |
| Wire arrangement motor | 400W servo |
| Power | 800W |
| Memory storage | 999files |
| Machine weight | 45kg |
| Machine size | 600L*500W*600H mm |
