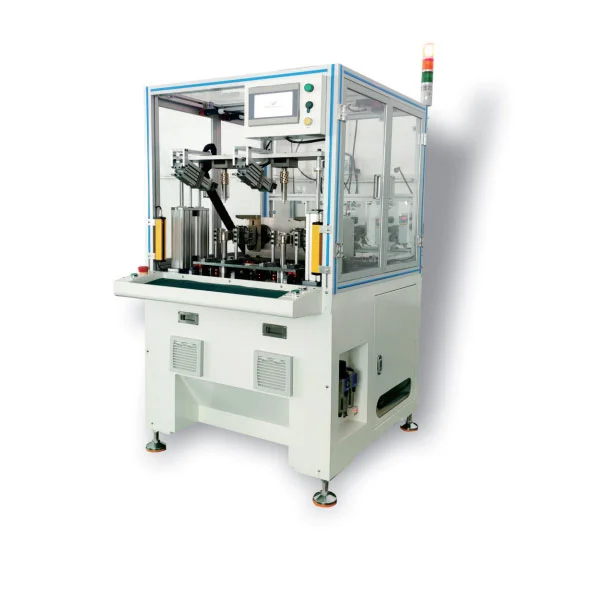

The following is the introduction of high quality Outer Stator Winding Machine, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!
It is used for winding processing of power tools and model aircraft motors, and is suitable for winding processing of external brushless cores, tooling position servo motor control, winding flat open program editing module, simple and easy to learn electronic control and mechanical parts are all from first-line mainstream brands.
| Name and model | TLW-182A Ordinary type | TLW-182S Precision Type |
| Number of stations | Dual station (3 axes) | Dual Station (6 Axes) |
| Applicable wire diameter range | 0.10mm-1.1mm | 0.10mm-1.1mm |
| Maximum core outer diameter | 110mm | 110mm |
| Maximum speed | 1300rpm/min | 600rpm/min |
| Applicable stack thickness | 30mm-80mm | 30mm-50mm |
| Applicable motor pole number | 6.8.9.10.12.... | 6.8.9.10.12.... |
| Total power | 3KW | 5KW |
| Power supply | Single-phase AC220V/50HZ | 380V/50HZthree-phase four-wire |
| Air source | 0.45MPa-0.7MPa | 0.45MPa-0.7MPa |
| Appearance | L960mm*W700mm*H1750mm | L1100mm*W860mm*H1850mm |
| Weight | 300KG | 500KG |
